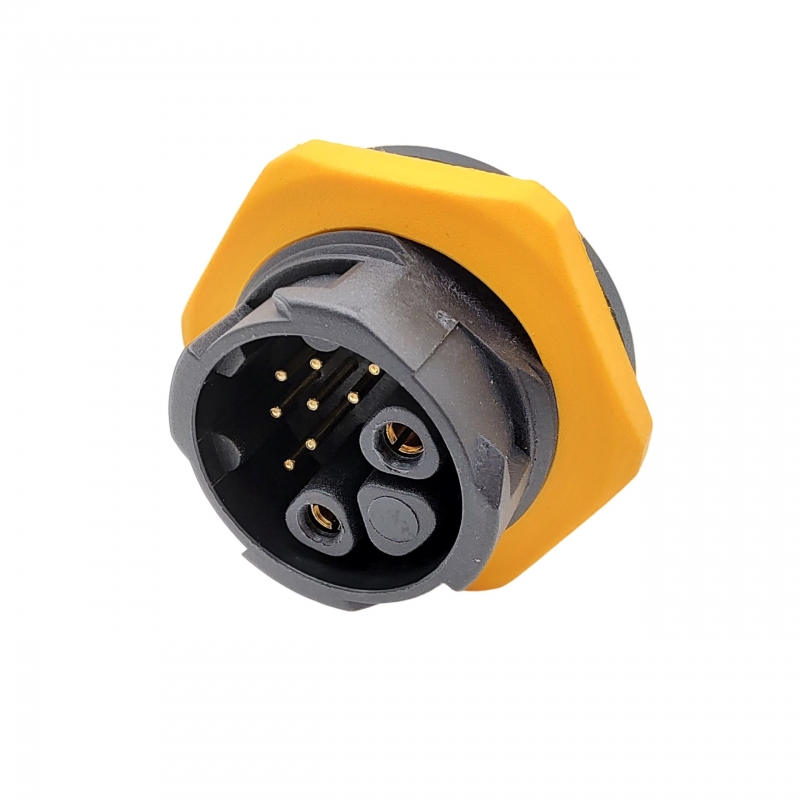

M25 series 2+8pins female receptacle(Push lock type, Front panel mounting)
PN: M252080302FMF
Name: M25 series 2+8pins female receptacle(Push lock type, Front panel mounting)
Features:
-Power 20A + Data 5A hybrid connection
-Push lock mating type makes the mating operation on site very easily.
Name: M25 series 2+8pins female receptacle(Push lock type, Front panel mounting)
Features:
-Power 20A + Data 5A hybrid connection
-Push lock mating type makes the mating operation on site very easily.
-IP67 waterproof protection.
-Male and female pins and sockets for power and data hybrid transmission by one connector,
for saving the connection cost and installation space.
-Widely used for LED screen modules connection.
-Both soldering pins and PCB pins for option.
-Male and female pins and sockets for power and data hybrid transmission by one connector,
for saving the connection cost and installation space.
-Widely used for LED screen modules connection.
-Both soldering pins and PCB pins for option.
-Multiple Fool-proof designs avoid wrong connection on device
-Orange, blue and black color clamping ring and screw nut for option.
-Extraordinary electrical features such as 1500V withstand voltage support.
-High performance PA66 Nylon material resist the harsh environment.
