2+3pins

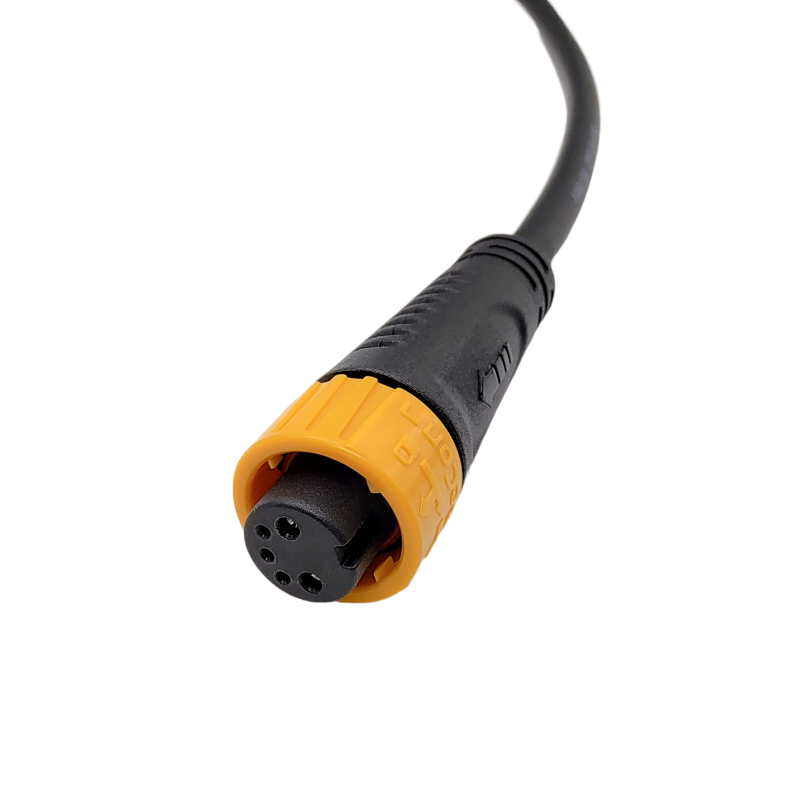

M16 series 2+3pin Female plug(Push lock type, Overmolded 180°)

PN: M162030301F01-xx
Name: M16 series 2+3pin female plug(Push lock type, Overmolded 180°)
Features:
-Push lock mating type makes the mating operation on site highly convenient.
-IP67 waterproof protection.
-2,3,4,5,6,7,8,10,12,14pin models cover different application
-Multiple Fool-proof designs avoid wrong connection on device
-Orange, blue and black color clamping ring and screw nut for option.
-Max. working current and voltage rate 10A, 300V.
-Extraordinary electrical features such as 1500V withstand voltage support.
-High performance PA66 Nylon material resist the harsh environment.




    M16 series 2/3/4/5/6pin models are widely used for Outdoor LED lighting, plant growing LED lighting, Landscape lamp, LED street lighting , Electrical device for outdoor useage etc.
